服務熱線：13305213118 / 0516-87036670

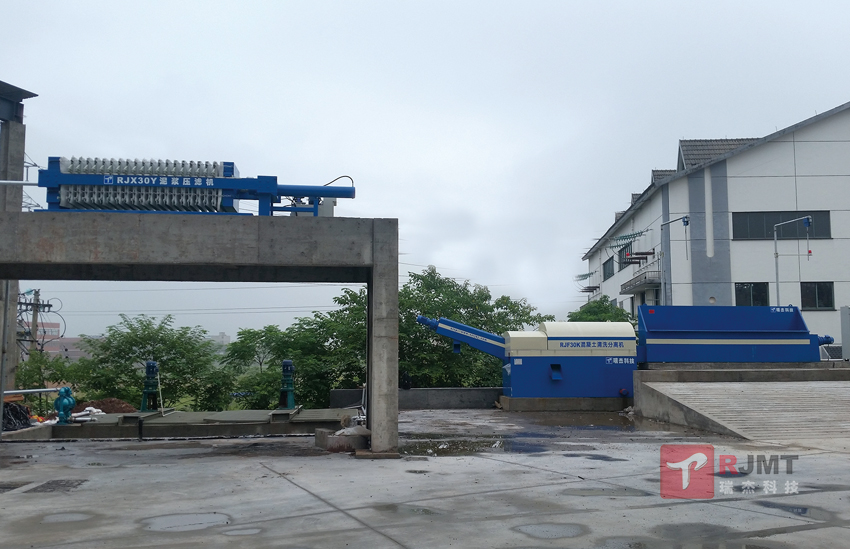

泥漿壓濾系統

售后電話：
13305213118、0516-87036670

RJX36Y型泥漿壓濾系統技術參數 Technical parameters of RJX36Y slurry filter press system
過濾面積 Filtration area	41m3	理論濾室容積 Theoretical chamber volume	0.53m3	濾餅厚度 Thickness of filter cake	30mm
過濾壓力 Filtration pressure	≤1.0MPa	濾板塊數 Number of filter plates	20+1塊	濾板尺寸 Size of filter plate	1000x1000x60mm
油缸公稱直徑 Nominal diameter of oil cylinder	120mm	油缸最大行程 Max. stroke of cylinder	160cm	油缸工作壓力 Cylinder working pressure	22MPa
過濾工作溫度 Filtration working temperature	≤90°	進料口公稱通徑 Nominal diameter of feed inlet	DN 100	出液型式 Discharge type	明流出液 Clear outflow liquid
裝機功率 Installed power	7.5KW	主機重量 Weight of main machine	3590kg	主機尺寸 Main machine size	5050x1350x1400mm

RJX80Y自動拉板壓濾機技術參數 RJX80Y automatic pull plate filter press technical parameters
過濾面積 Filtration area	82m3	理論濾室容積 Theoretical chamber volume	1.08m3	濾餅厚度 Thickness of filter cake	30mm
過濾壓力 Filtration pressure	≤0.8MPa	濾板塊數 Number of filter plates	40+1塊	濾板尺寸 Size of filter plate	1000x1000x60mm
油缸公稱直徑 Nominal diameter of oil cylinder	220mm	油缸最大行程 Max. stroke of cylinder	550cm	油缸工作壓力 Cylinder working pressure	22MPa
過濾工作溫度 Filtration working temperature	≤90°	進料口公稱通徑 Nominal diameter of feed inlet	DN 100	出液型式 Discharge type	明流出液 Clear outflow liquid
裝機功率 Installed power	15KW	主機重量 Weight of main machine	8870kg	主機尺寸 Main machine size	4701x1700x1800mm
